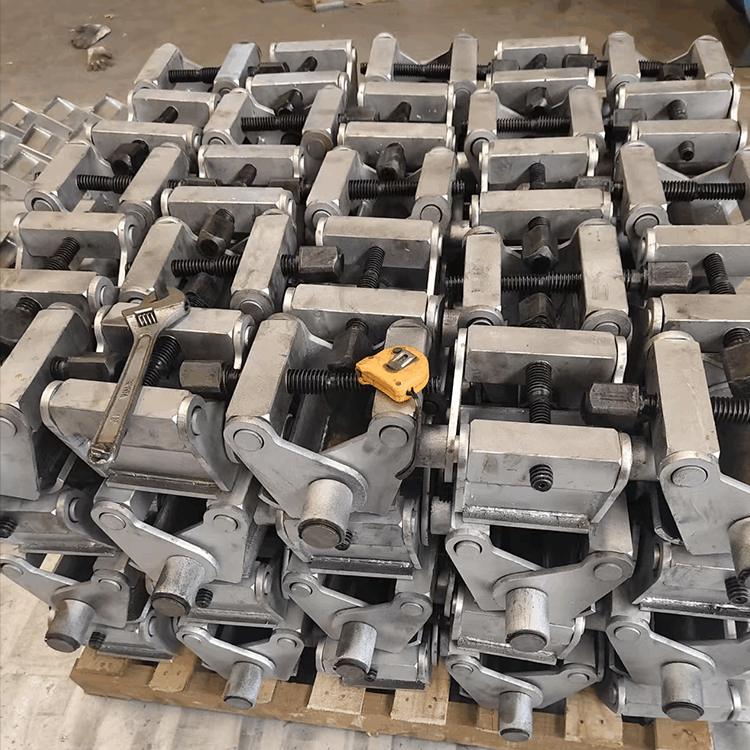

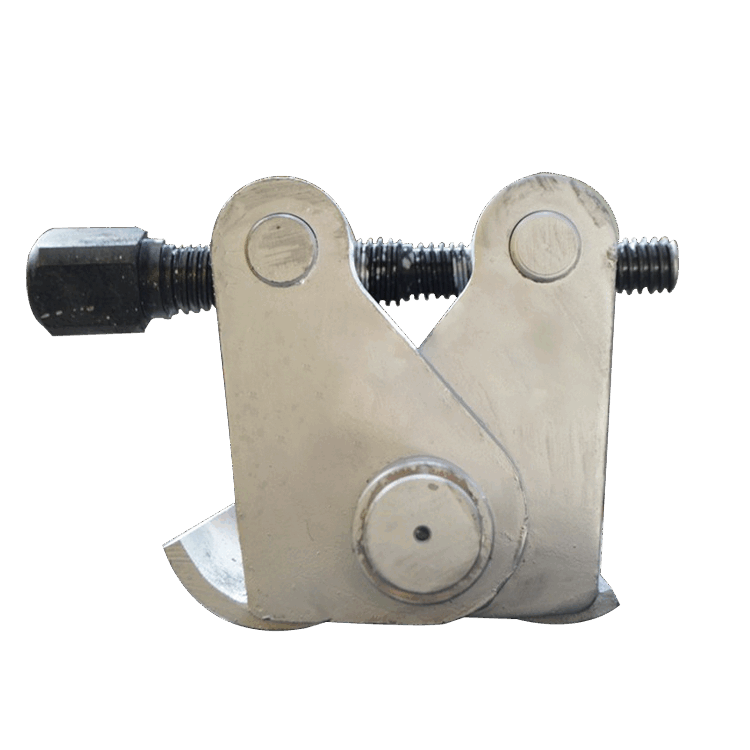

‌Anode Clamp Fixture (Small Box Clamp) Automation System

‌

‌Product Function：‌

An essential auxiliary mechanism for anode replacement that:

• ‌● Securely clamps anode rods during operation

• ‌● Automatically releases rods via screw loosening when carbon blocks are depleted

• ‌● Enables swift rod extraction and replacement by other systems

‌Key Applications：

‌

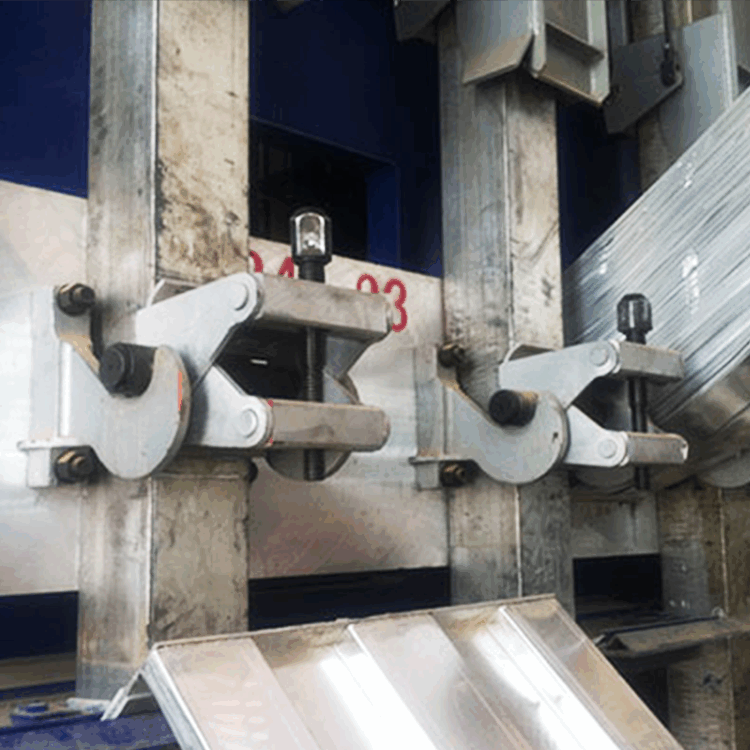

‌● Installs on anode busbar lifting frames as an automated clamping solution

‌● Utilizes existing workshop air supply as power source

Features：

• ‌● ‌Auto-wrench sockets‌ for precise clamp tightening/loosening

• ‌● ‌Telescopic pneumatic cylinders‌ for controlled movement

• ‌● ‌Pneumatic motor-driven sockets‌ ensuring consistent torque (adjustable per operational needs)

•


‌Technical Advantages：‌

• ‌● ‌Voltage Drop Reduction:‌ Enhances rod-busbar contact, improving current distribution

• ‌● ‌Energy Efficiency:‌ Stabilizes electrolytic cell operation, boosting current efficiency

• ‌● ‌Labor Optimization:‌ Cuts required manpower to 2-3 operators per shift

• ‌● ‌Non-Intrusive Design:‌ Works seamlessly with existing busbar lifting systems

•


‌Operation Flow：‌

1. 1.Standard busbar frame clamps anode rod

2. 2.System auto-releases small box clamps during lifting

3. 3.Auto-retightens post-lifting to secure rods

4.


‌Technical Specifications：

‌

‌

Unique Selling Points：

✔ ‌Torque Customization‌ – Field-adjustable for optimal contact pressure

✔ ‌Industry 4.0 Ready‌ – Full automation compatibility

✔ ‌Maintenance-Friendly‌ – Designed for harsh smelting environments
